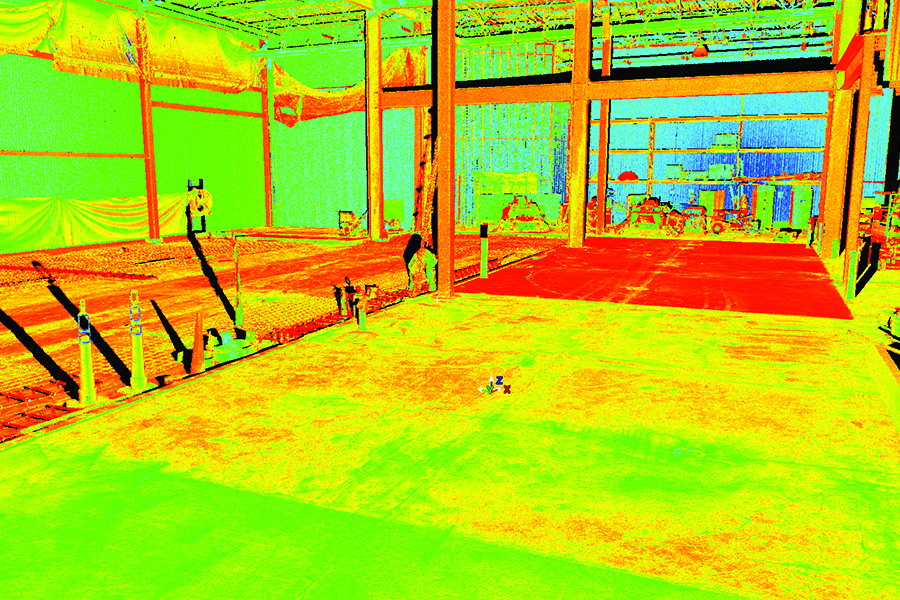

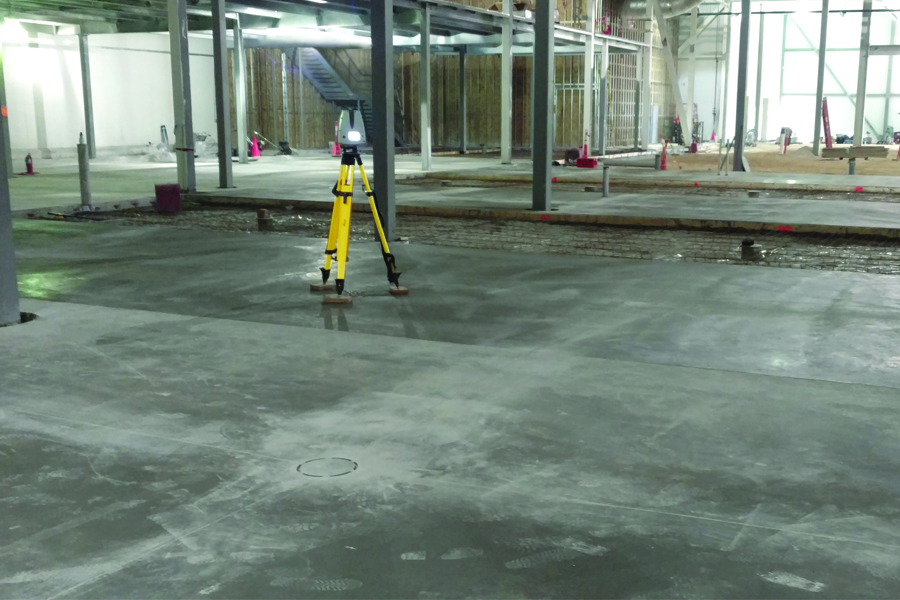

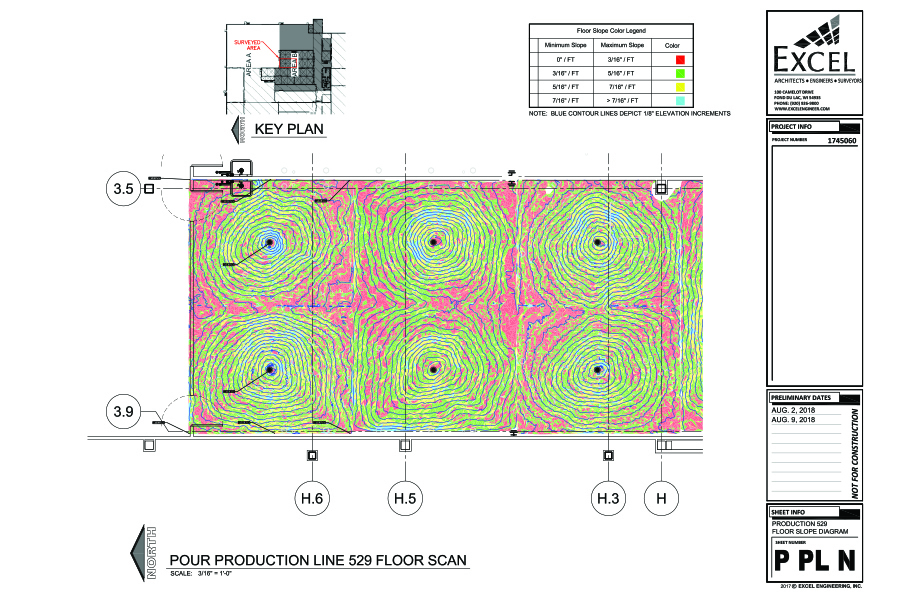

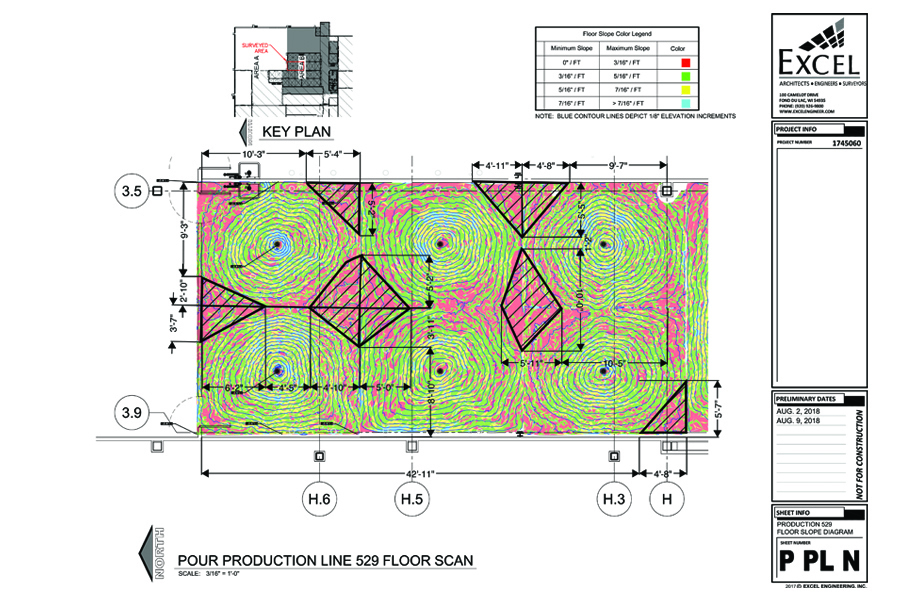

High Definition 3D Laser Scanning technology was used to verify critical floor slopes following concrete pours within a food production facility. Millions of points were quickly captured of the concrete surface. The point cloud data was converted into a topographic surface and slope variations were then color coded. Problem areas could then be easily identified and corrected before the final floor finish was installed. This process proved to be very valuable to ensure the owner received a floor that wasn’t too flat causing puddling and wasn’t too steep creating a slipping hazard.

Laser Scanning allows for safe, unobtrusive, highly accurate data collection to create a more complete asbuilt record of all types of structures and facilities. The “Laser Scanning” approach can better identify conflicts early in the design process to help eliminate costly changes and delays during construction.
